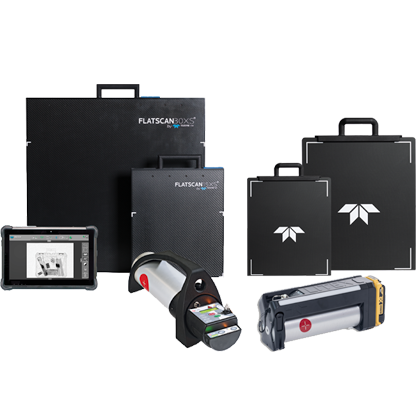

Portable X-ray Systems(Bundle)

Portable X-ray Machine | X Ray Scanner Supplier in India

Portable X-ray Machine

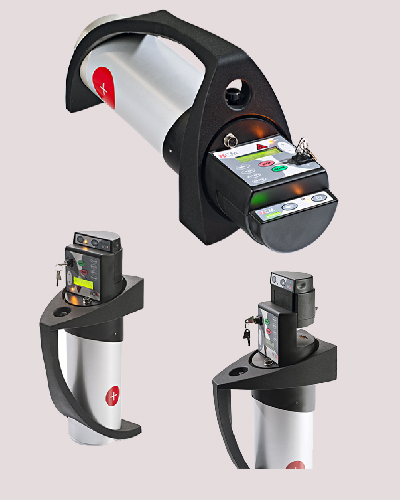

CP120B & CP160B

Constant potential ultralightweight battery-powered X-ray generators for NDT and Security inspections

Bomb Detction

Drug Search

Custom Control

NDT Inspection

  • Constant potential output 120 kV - 1 mA / 160 kV - 0.5 mA
  • 60° x 60° directional beam
  • Focal spot of 0.8 mm x 0.5 mm / 0.8 mm x 0.7 mm
  • 7 kg / 9.2 kg including battery pack and handling feature
  • Extended operation, external power supply options
  • Optimized for new digital and radiographic imaging media

Advanced Technology

Over recent years, there have been major advances in imaging technology: CMOS silicon active pixel sensors, CCD capture devices, and high speed film-based systems (such as F8 + RCF screens). Combine these with the ultra-lightweight, mains power-independent CP120B and CP160B as the source of X-rays and the result is a totally new concept for NDT and SECURITY applications.

Greater penetrating power and almost incredibly low and compact size are achieved by the advanced 100 kHz resonant mode high voltage transformer. This delivers a constant DC output that easily outperforms contemporary 150 kV and 200 kV cold cathode pulsed X-ray generators. Depending on the detector used. CP120B and CP160B will image through steel plates up to 10 mm and 21 mm thick with a very short exposure time

The CP120B and CP160B can also be run continuously for several minutes without cooling interruptions, a major improvement on the "few seconds" possible with pulsed, cold cathode X-ray units.

A handling fixture that makes all the difference

Careful attention has also been given to help make working on site faster, more accurate , and easier. The strong, shock-absorbing and visually appealing handling fixture anticipate users' needs.

Remote Operation

Cable or external driven operation simply achieved through the front panel connector. Thanks to the serial port RS232. kV, mA, exposure time and pre-warning time can be changed at a distance with a standard text terminal.

The communication accepts text Commands based on the echo mode protocol. For wireless operation, Bluetooth capabilities have even been implemented.

CP120B & CP160B technical specifications

CP120B & CP160B Units CP120B CP160B
Radiation Geometry - Directional Directional
Voltage Output Type - Constant Potential Constant Potential
Output voltage range Kv 40 to 120 40 to 120
Output voltage selection step Kv 1 1
Tube current range mA 0.1 to 1.0 0.1 to 0.5
Tube current selection step mA 0.1 0.1
Max. anode Dissipation Watts 120 80
Maximum useful angle of X-ray beam (°) 50x50 60x60
Dimension of optical focal spot mm-in 0.8x0.5 - 0.031x0.019 0.7x0.5 - 0.031x0.027
Inherent filtration Equiv. mm Al 3.5 3.5
Operating temperature range °C / °F -25 to +50 / -13 to +122 -25 to +50 / -13 to +122
Storage temperature range °C / °F -40 to +80 / -40 to +176 -40 to +80 / -40 to +176
SF6lation pressure at 20°C kg/cm2 - lbs/cm2 6.0 -13.2 6.0 -13.2
Wheather Prrof Level - IP54 IP54
Overall dimensions mm3 - in3 470x155x227 - 18.6x6.1x8.9 520x155x227 - 20.5x6.1x8.9
Tube head size mm2 - in2 φ124x440 φ4.9x17.3 φ124x490 φ4.9x19.3
Total weight (including battery) kg - lbs 7 - 15.3 9.2 - 20.1
Penetration at aluminium at max. power (FFD=400mm / Film D7/D 0/T=1 min) mm Al - in. al 60 - 2.4 100 - 3.9
Max continuous exposure time sec 300 300
Battery Li-Ion VDC mAh 37 37
Working time at fully power until low battery min at 20°C 15 15
Pre-warning time adjustable sec from 0 to 99 from 0 to 99
Bluetooth connection - Yes Yes
RS232 correction - Yes Yes

Control Settings

Overheating Protection
X-ray on flashing LED
Power ON/OFF key switch
Start/Stop buttons
Pre-warning time adjustable from 0 to 99 sec
10A fuse
Connector for remote operation
Time Kv, mA, pre-warning settings
Temperature, kV, mA, time displayed
Battery Gauge

Optional Accessories

Visual and audible warning + safety interlock
Spare battery pack
External IP65 mains power supply (85V to 264V)
30m ON/OFF trigger cable
100m Bluetooth key for PC Control

Standard Accessories

Hermetic reinforced carrying case
battery charger
