Power Capability

A robot with a flat battery stuck in an uncleared area gives 2 problems. Loss of remote capability and also having to send an operator to retrieve it.
Search for command wires, trip wires and signs of wire concealment to locate suspect devices before deciding and applying the correct render safe procedure.
Mission duration is a critical factor and Mini ROV’ 2-4 hour mission duration delivers. You need to be confident that the battery will survive the mission and give you sufficient feedback to replace or recharge batteries before it is too late.
Battery status of both robot and control unit are displayed on the screen.
You need powerful lightweight batteries and lithium ion currently offers the best power to weight ratio and availability.
You also need standard batteries that can be sourced locally. Specialist batteries, only available from robot manufacturers create a severe logistics problem. High cost and stock holding all add to the problem.
Mini ROV uses the standard 2590 Lithium Ion format battery available from a number of manufacturers.

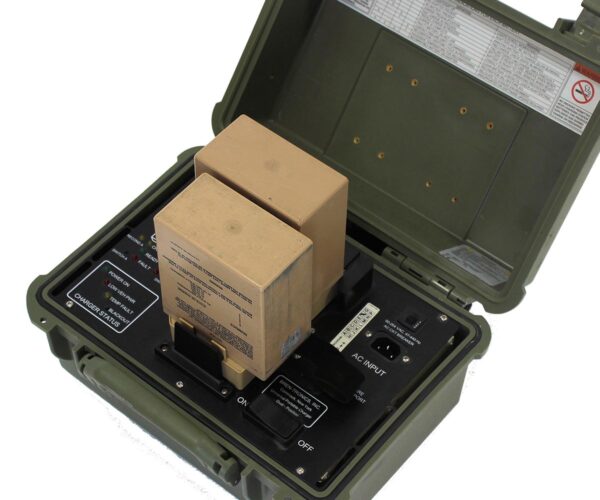

You also don’t want multiple chargers due to different batteries for the robot and the control unit. On Mini ROV, both the robot and control unit use the same battery and therefore the same charger.

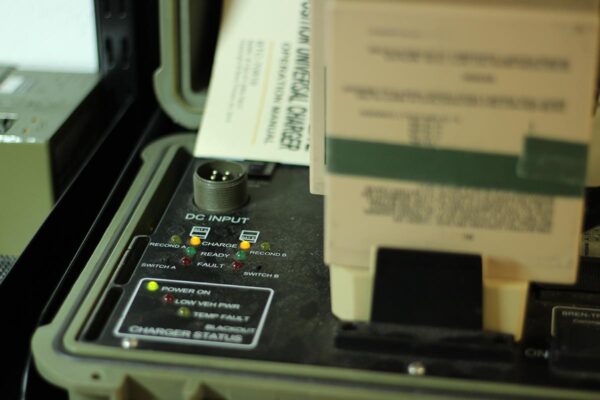

Local voltages present no problems as the charger can work at 220V/110V and 24V/12V.
Depending on the battery manufacturer, each battery has a 5 bar LCD display showing current battery capacity. This gives a quick visual reference.
When aiming barrelled disruptors you will need to be able to judge distances accurately for maximum disruptive effect, and Mini ROV’ laser aiming system viewed through the cameras will allow this.
Batteries with the SMBUS interface will also send their battery data status to the control unit when installed in Mini ROV.
Additional battery data such as number of recharges, serial number, manufacturer etc. is also available. This additional data is crucial for battery management programs, and allows you to go on task knowing that your batteries will not only recharge and hold their charge correctly but also will do it repeatedly.

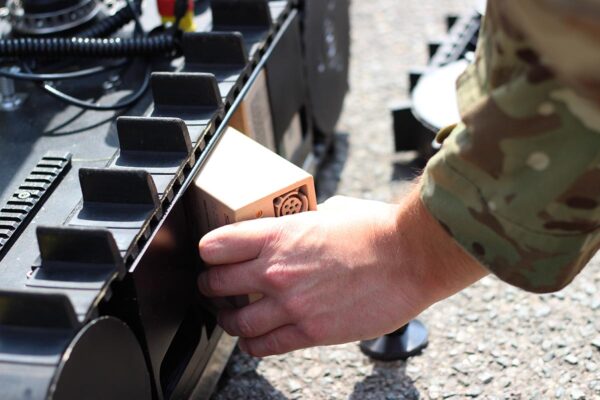

Battery changeover is also very fast, in less than 2 minutes and does not require any tools.
Battery changeover can be done quickly in the field, with no need to return to a controlled point.

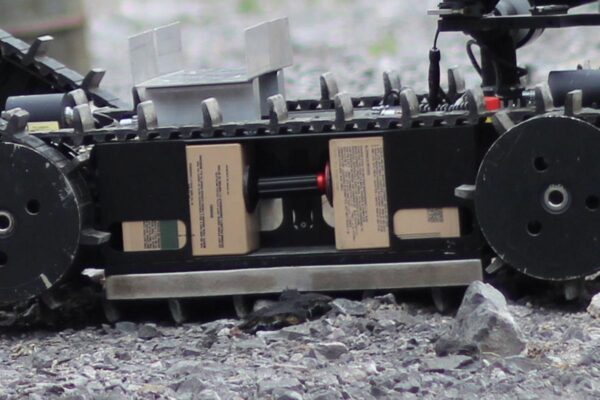

Robot batteries are held externally, with no covers or access hatches to open. Once inserted, they form a watertight seal. Their low position in the chassis helps with stability as it keeps the centre of gravity low.
There is also no cable snagging risk as the 2590 batteries are inserted directly into the robot or control unit without using cables.
Risk of disconnection, for example due to vibration, is eliminated due to their secured insertion method.
Should batteries become low during a mission, a warning is sent to the operator to bring robot back to a safe point. Once the warning is activated, Mini ROV can still travel at least 500m ensuring it can be brought back to a safe place to change the battery before communication is lost.
The control unit has the same low battery warning system enabling the control unit battery to be changed at a convenient point during the mission rather than at a critical point.

Electrical protection is ensured through the batteries own electrical protection system protection and Mini ROV’ protection systems. This ensures that no electrical parts can fail due to electrical problems such as current surge.

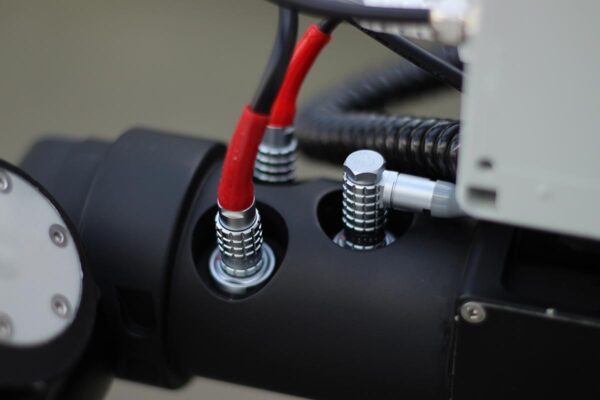

If you need to power 3rd party equipment, Mini ROV has waterproof 12v and 24v on board power supplies ready to deliver the power you need.
Safety is paramount and Mini ROV’ low operating voltage of 24V ensures this.

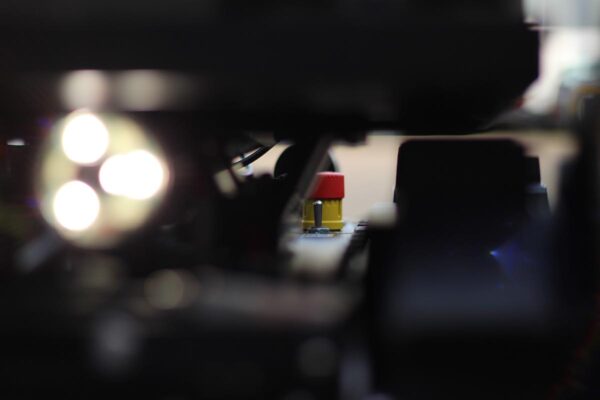

A physical emergency stop is fitted to the robot and control unit and it is also possible to send an emergency stop signal from the control unit to the robot which will instantly immobilise the robot by physically disconnecting the batteries.
Cleaning and decontamination of batteries is simple due to their sealed design.
